Low Pressure Permanent Magnet Double Frequency Two-stage Compression Screw Air Compressor

Low Pressure Permanent Magnet Double Frequency Two-stage Compression Screw Air Compressor

DHLV-Z series low pressure permanent magnet double frequency two-stage compression screw air compressor is equipped with customized secondary compression low-pressure dedicated host and IE5-class permanent magnet synchronous motor. Features low-pressure special oil-air separation system, silent centrifugal fan, dual frequency conversion for host and fan, enlarged cooler with side suction & top discharge, and hot-cold partition design. Built-in touch-screen microcomputer controller for real-time monitoring, ensuring high efficiency, stable and reliable operation.
Get a Free Inquiry

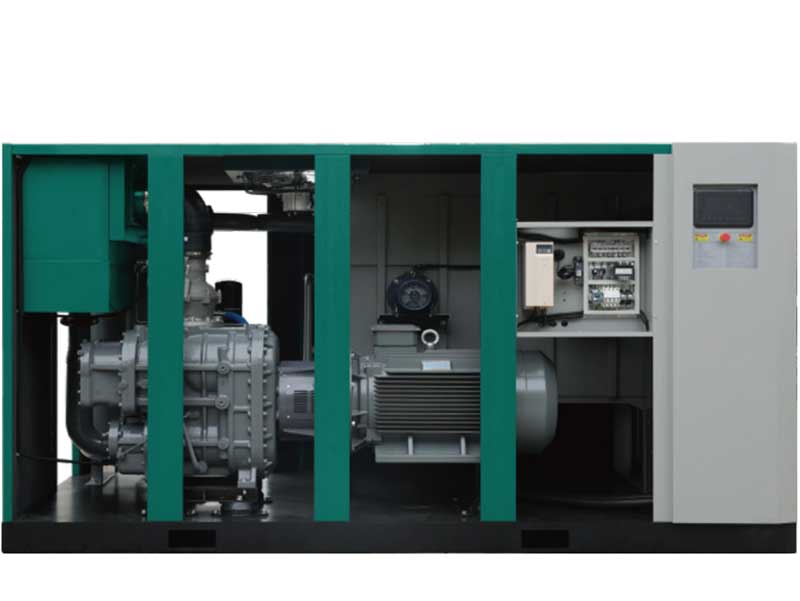

DHLV-Z series

Low pressure permanent magnet double frequency two-stage compression screw air compressor

Custom-designed secondary compression and low pressure special host, permanent magnet synchronous motor efficiency reached IE5 level, low pressure special oil and gas separation system design, lower oil content, silent centrifugal fan configuration, host fan double frequency design, increase the cooler sidesuction top row design, cold and hot partition design, man-machine AC interface touch screen microcomputer controller real-time monitoring operation status.

Customized secondary
compression low-voltage
dedicated host

Permanent magnet
synchronous motor
efficiency Reach IE5 level

Design of low-pressure special oil and air
separation system

Silent centrifugal fan design
Host fan dual frequency conversion design

Enlarged cooler side ceiling row design

Hot and cold zone design

Monitor operating status
in real time

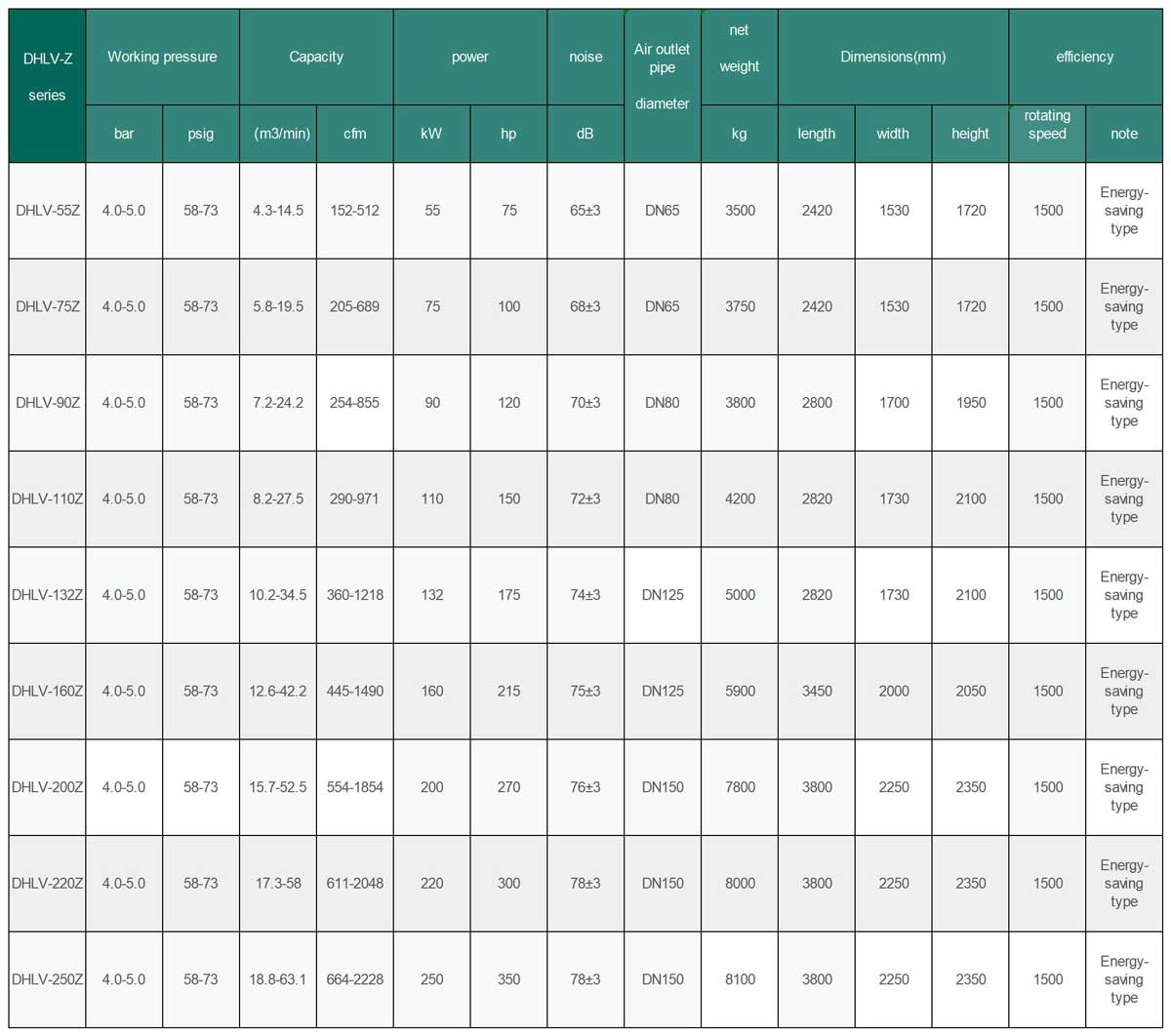

DHLV-Z Series Specifications

Low Pressure Permanent Magnet Double Frequency Two-stage Compression Screw Air Compressor
