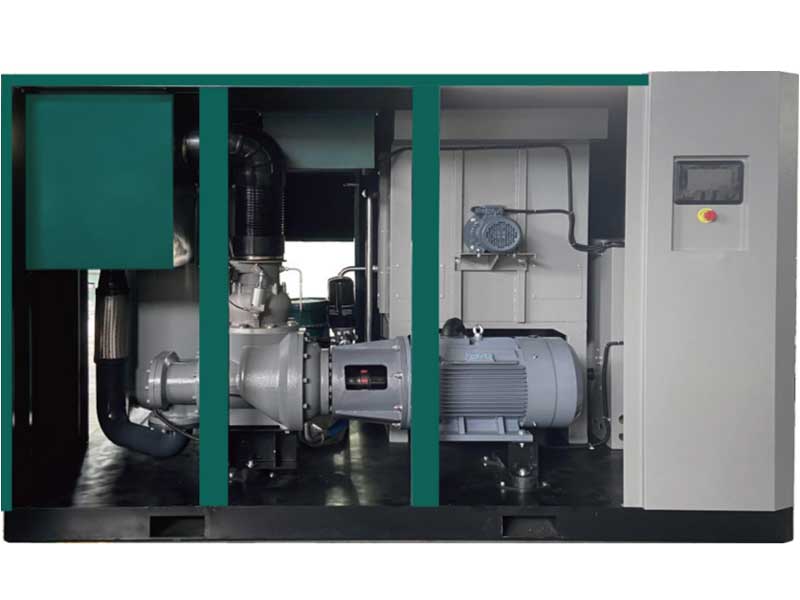

Low Pressure Permanent Magnet Double Frequency Single Stage Compression Screw Air Compressor
DHLV‑G series low pressure permanent magnet double frequency single stage compression screw air compressor adopts large rotor low speed low pressure dedicated host and IE5‑class permanent magnet synchronous motor. It comes with low pressure special oil‑air separation system, silent centrifugal fan, dual frequency conversion for host and fan, enlarged cooler with side suction & top discharge, and hot‑cold partition design. Equipped with touch‑screen microcomputer controller for real‑time monitoring, ensuring high efficiency, stable and reliable operation.
DHLV-G series
Low pressure permanent magnet double frequency single stage compression screw air compressor
Large rotor low speed and low voltage special host, permanent magnet synchronous motor efficiency reaches IE5 level, low pressure special oil and gas separation system design, lower oil content, silent centrifugal fan
configuration, host fan double frequency conversion design, increase the cooler side suction top row design, hot and cold partition design, man-machine AC interface touch screen microcomputer controller real-time monitoring operation status.
Large rotor low speed and low pressure special host | The efficiency of permanent magnet synchronous motor reaches IE5 level |
Design of low-pressure special oil and air separation system | Silent centrifugal fan design |
| Host fan dual frequency conversion design | Enlarged cooler side ceiling row design |
Hot and cold zone design | Monitor o-perating status in real time |

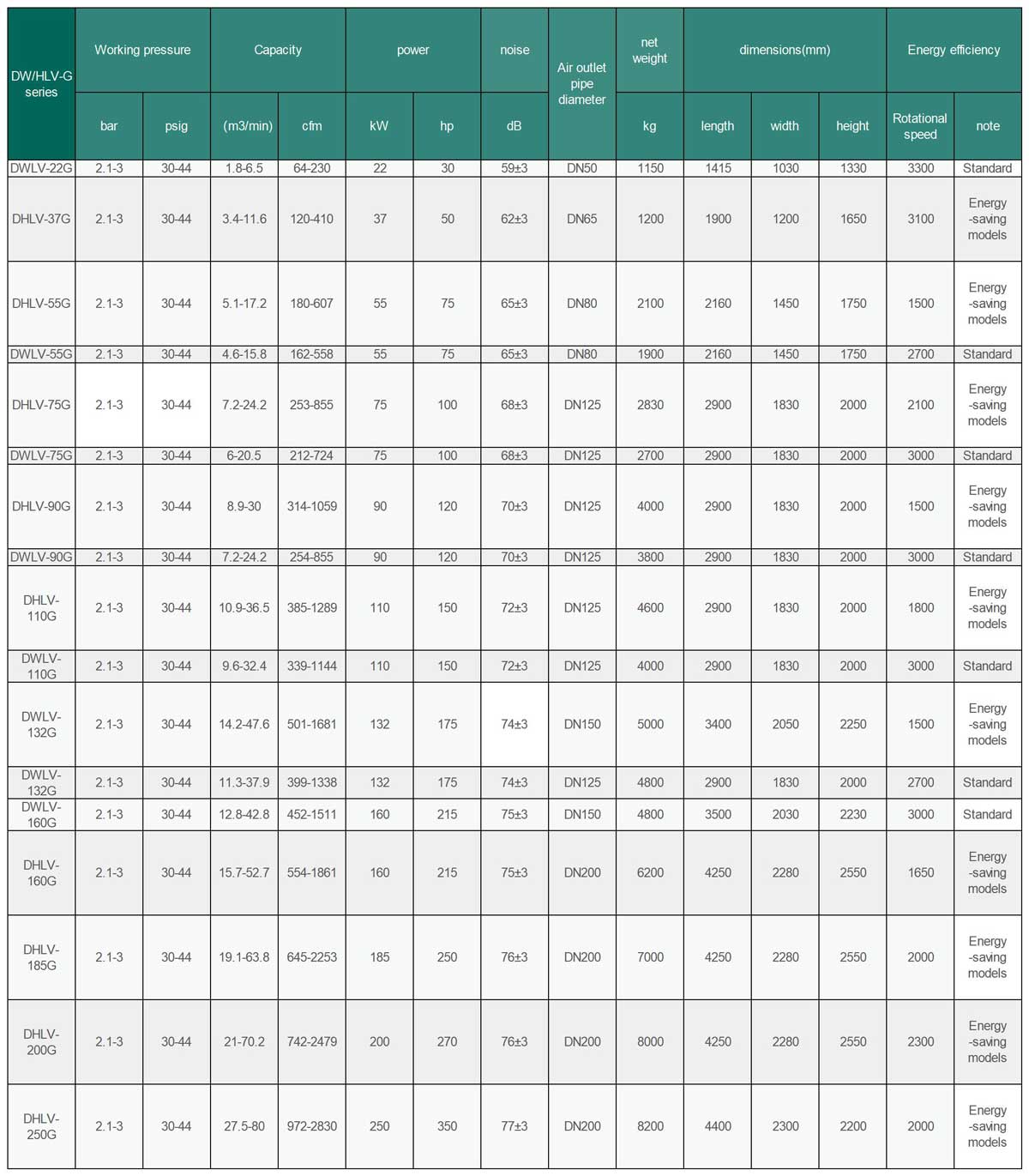

DHLV-G Series Specifications
